BIGTREETECH CB2 Core Control Board 2GB LPDDR4+32GB eMMC Storage Upgraded

BIGTREETECH CB2 Core Control Board 2GB LPDDR4+32GB eMMC Storage Upgraded

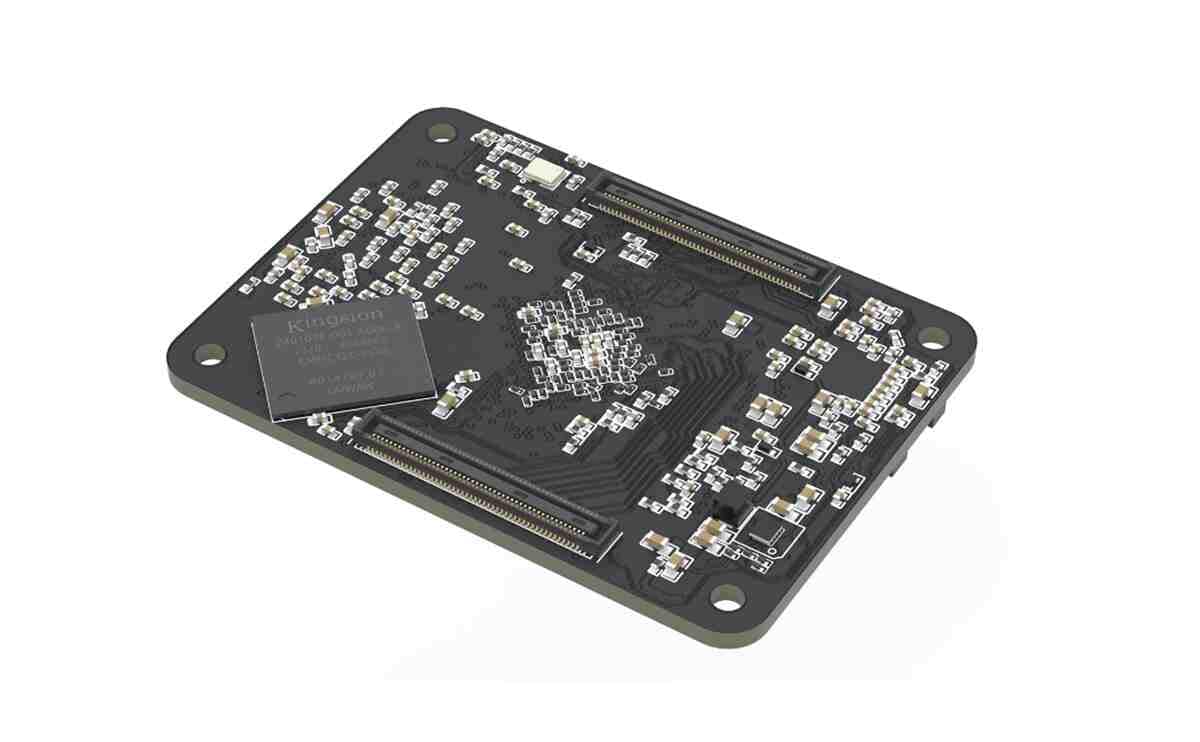

​The BIGTREETECH CB2 Core Control Board is a high-performance computing module designed to enhance 3D printing operations.

• Building upon its predecessor, the CB1, the CB2 offers significant improvements in processing power, memory, storage, and connectivity

Specifications

• The CB2 is powered by the Rockchip RK3566 processor, which features a quad-core Cortex-A55 architecture.
• The processor operates at speeds of up to 1.8GHz, delivering impressive computational power to handle demanding tasks.
• With this configuration, the CB2 ensures efficient and smooth performance for 3D printing applications, capable of processing complex operations and ensuring fast data processing.
• Whether you are working with high-resolution models or executing intricate printing instructions, the processor provides the necessary performance to handle it with ease, resulting in reliable, consistent 3D printing operations.
• The CB2 board is equipped with 2GB of LPDDR4 RAM, offering substantial memory capacity for handling printing tasks effectively.
• LPDDR4 memory ensures faster data transfer speeds, which translates into better overall performance, especially when dealing with large files or multi-step processes during printing.
• The increased memory bandwidth ensures improved responsiveness and smoother task execution during printing, reducing delays or bottlenecks that could slow down the printing process.
• This is crucial for maintaining the performance consistency of Klipper firmware for BTT CB2 , particularly when running real-time processes and executing print jobs that require large amounts of data to be processed quickly and efficiently.
• The CB2 comes with an onboard 32GB eMMC module, providing ample storage space for storing operating systems, firmware, and user data.
• eMMC storage offers stable and high-speed performance, ensuring that the CB2 can reliably store and access data needed for 3D printing operations.
• This is especially important for Klipper firmware operations, where real-time data processing and fast storage access are required to ensure smooth operation of 3D printers.
• The 32GB capacity is large enough to handle the necessary software, configurations, and data, while offering fast read/write speeds that contribute to better performance and overall reliability.
• This setup ensures that the CB2 board performs optimally, minimizing downtime or potential performance drops during long or complex printing tasks, keeping the process running smoothly without interruptions

Features

• Wi-Fi: Supports dual-band (2.4GHz and 5GHz) Wi-Fi for robust and stable wireless connections. ​
• Ethernet: Features a Gigabit Ethernet interface, ensuring seamless connectivity for remote printing and file transfers. ​
• Bluetooth: Includes Bluetooth 5.2 support for enhanced wireless communication. ​
• Interfaces:
• Display and Camera: Incorporates MIPI DSI (Display Serial Interface) and MIPI CSI (Camera Serial Interface) ports, facilitating the connection of touchscreens and cameras.
• USB Ports: Provides multiple USB interfaces, including USB 2.0 and USB 3.0 ports, for versatile peripheral connectivity. ​

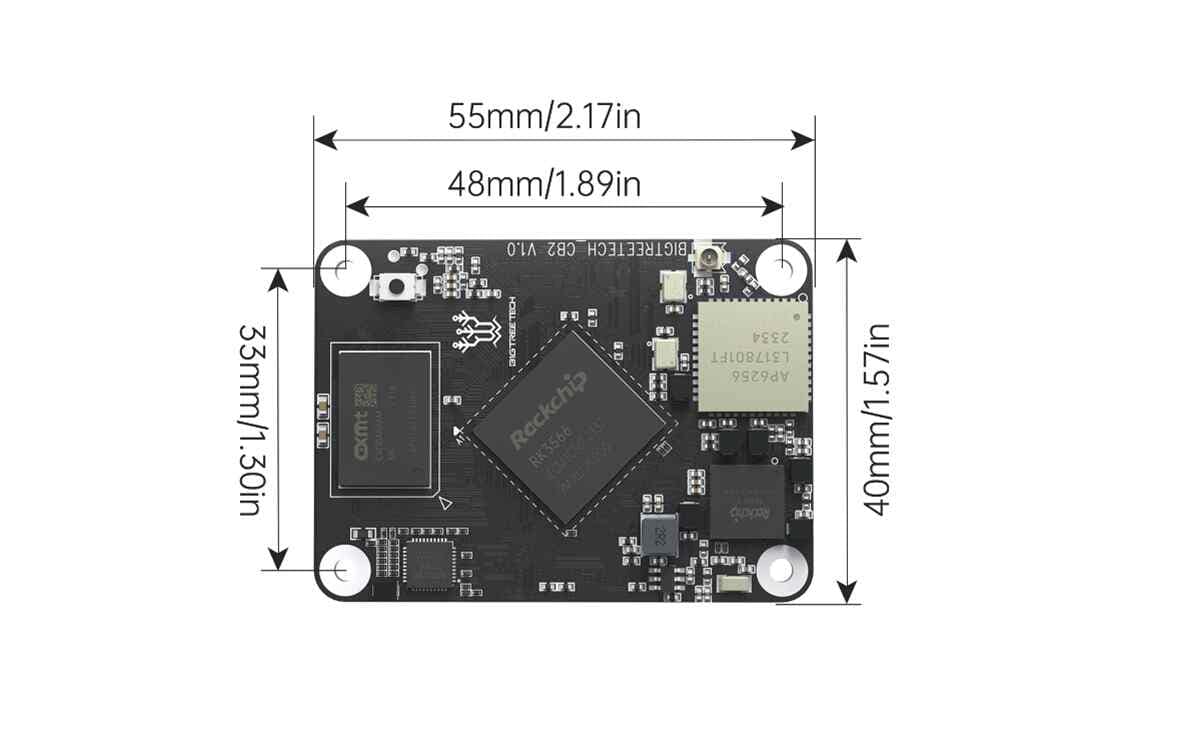

• Form Factor: Designed to be compatible with the Raspberry Pi Compute Module 4 (CM4) form factor, utilizing two 100-pin high-speed board-to-board connectors for easy integration with various expansion boards

Compatibility​

• Raspberry Pi 3B and 4B models
• BIGTREETECH Manta series boards such as M8P, M5P, M4P, and E3EZ
• BIGTREETECH Pi4B Adapter ​
• BIGTREETECH PAD 7

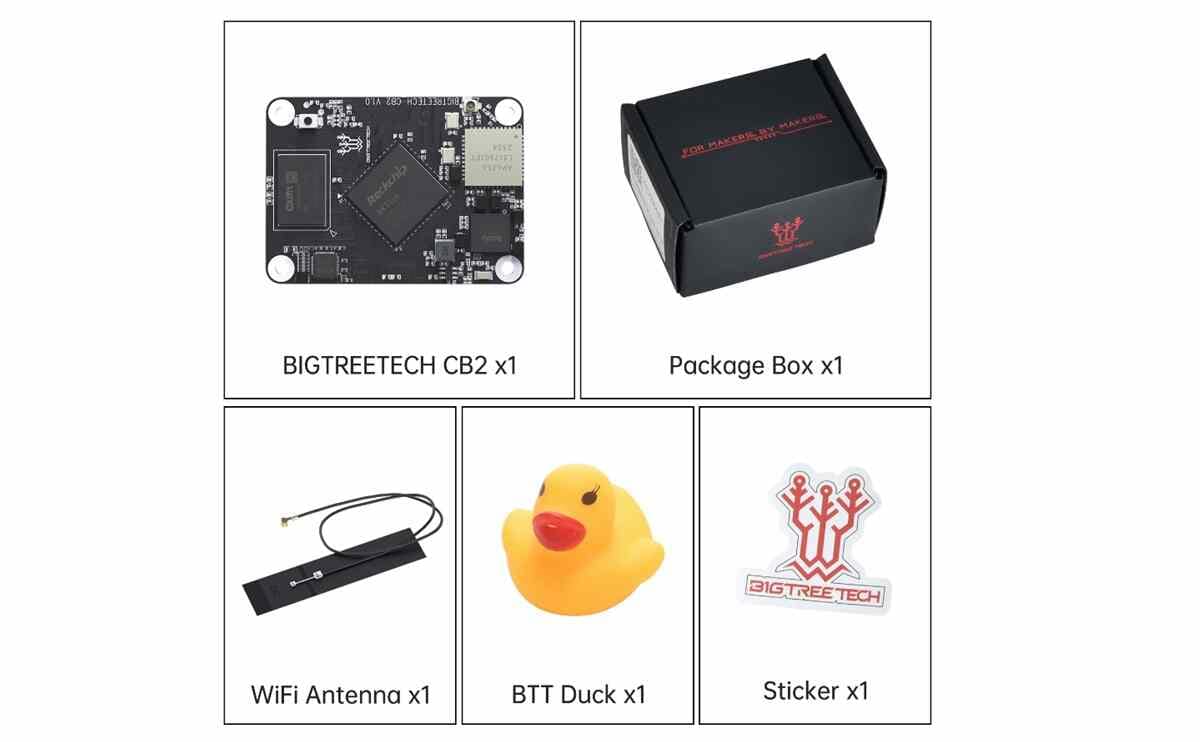

Package includes

• BIGTREETECH CB2 x 1
