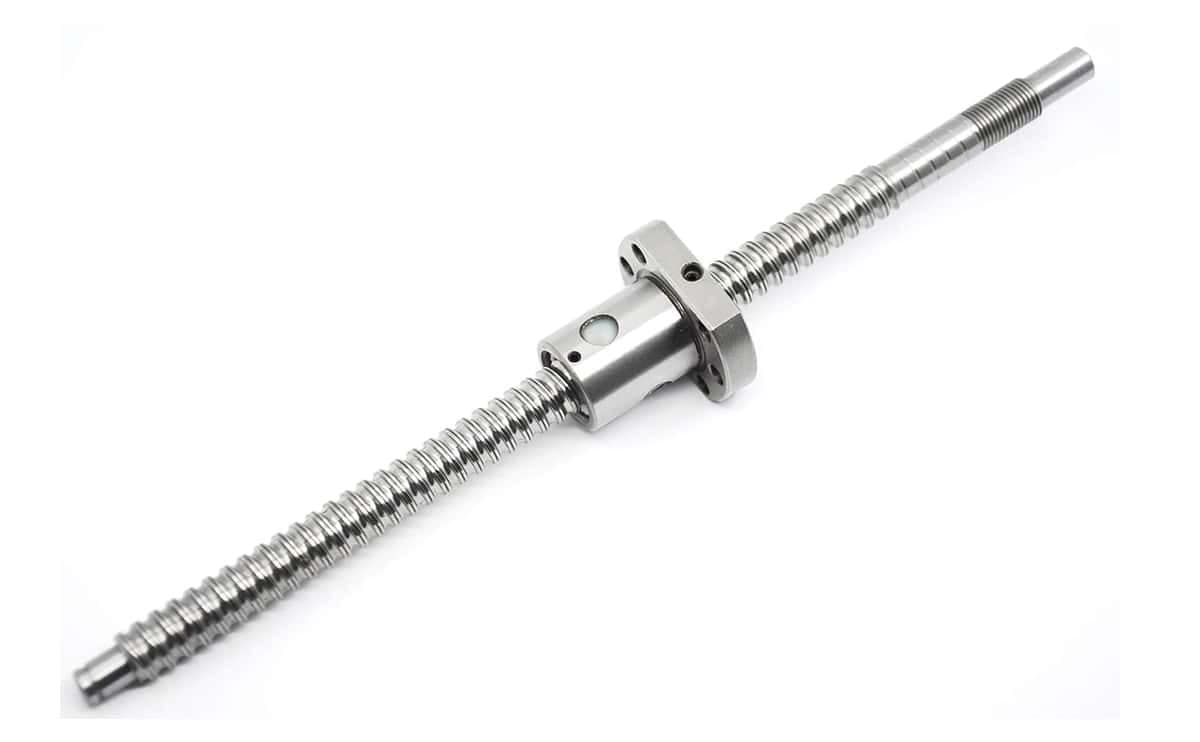

Ball Screw SFU2010 Dia 20mm Length 1000mm Pitch 10mm with nut

Ball Screw SFU2010 Dia 20mm Length 1000mm Pitch 10mm with nut (with end machining):

Ball Screw SFU2010, designed to provide precision and reliability in various linear motion applications. With a C7 grade precision and made from durable carbon steel material, this ball screw is built to deliver exceptional performance.

• The SFU2010 model offers versatility with multiple length 1000mm, allowing you to choose the perfect fit for your specific requirements. Whether you need a shorter length for compact systems or a longer one for extended reach, we have you covered.
• Each packet includes one Ballscrew SFU2010 with a nut, ensuring you have all the necessary components for easy installation and operation.

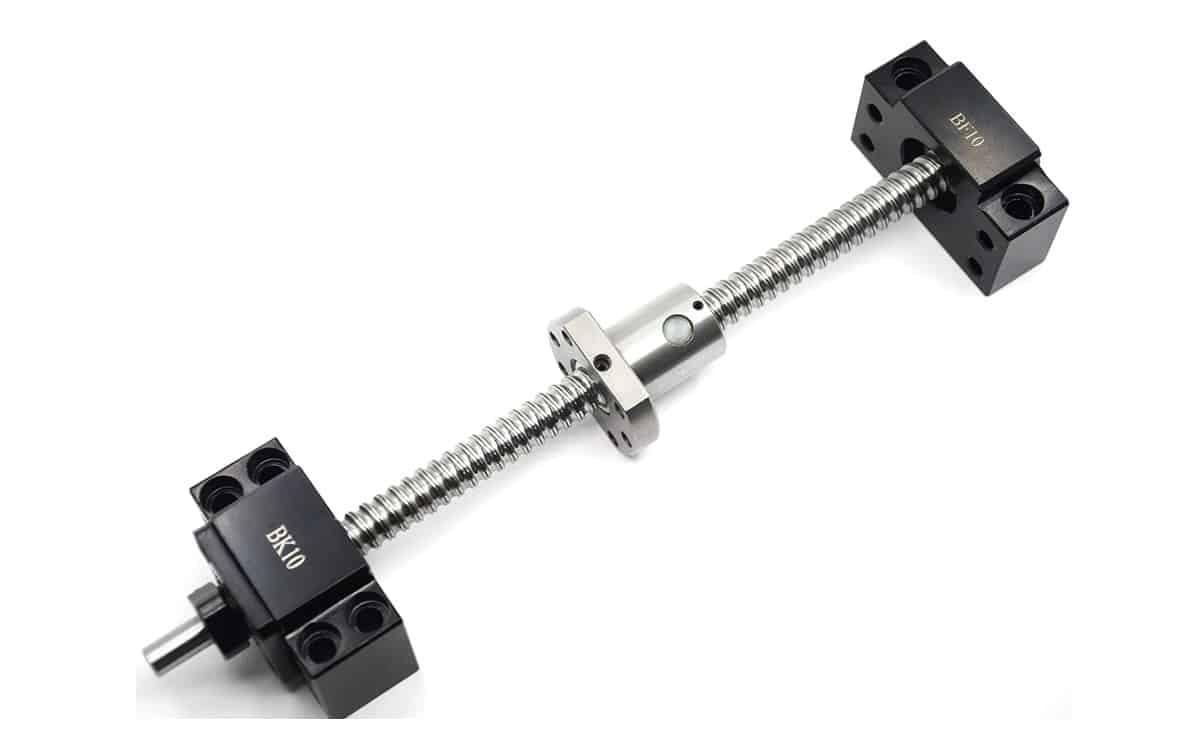

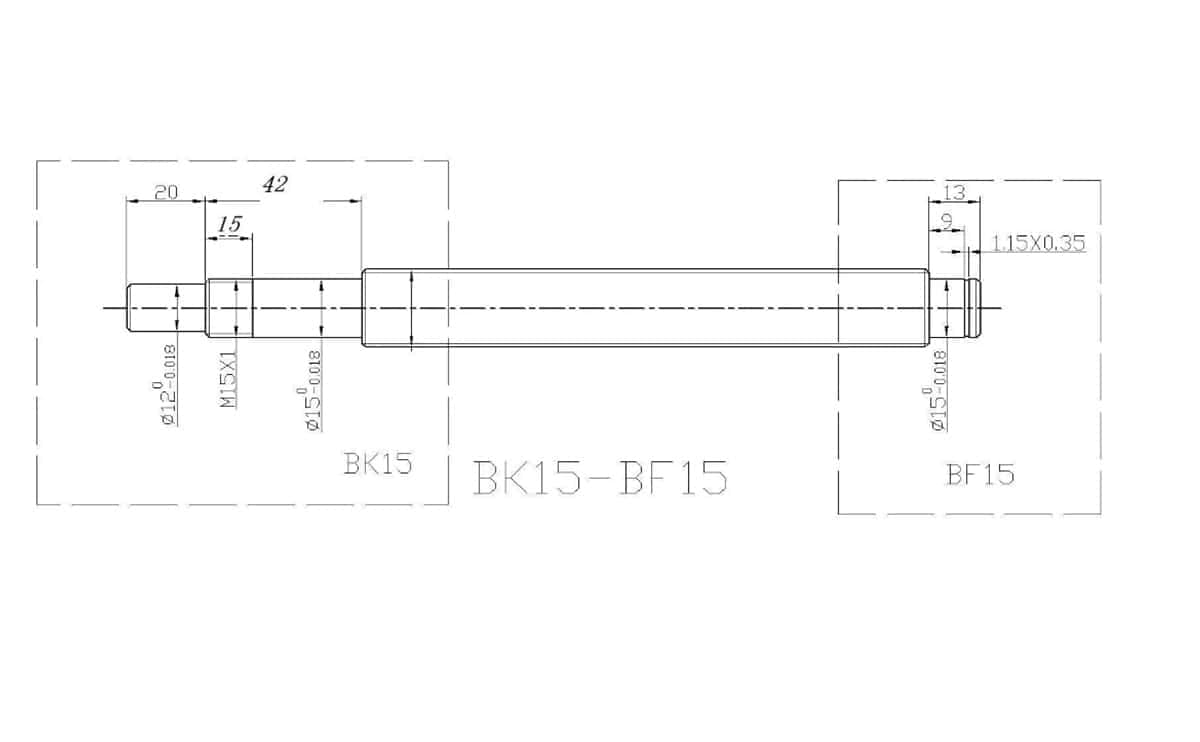

• Please note that the overall length of the ball screw includes the end machining part, which is designed with BK15/BF15 standard end machining for added convenience.
• Ball screw is meticulously crafted with precision end machining to ensure optimal performance and smooth linear motion. The high-grade material used guarantees durability and longevity, making it a reliable choice for a wide range of applications.
• Experience the benefits of screw and balls SFU2010 and enjoy precise and accurate linear motion in your projects.
• Order now and elevate the performance of your machinery.
• Ball screw also available in different size, ball screw SFU1610, 12mm Ball screw, etc.

Specifications:

1. Manufacturing Process: Rolled Thread.
2. Precision: C7 Grade.
3. Material: Carbon Steel.
4. Model: SFU2010.
5. Length: 1000mm.

Packages Include:

• 1 x 1000mm SFU2010 ball screw with nut (with end machining).
