Anti backlash nut spring loaded circle/rectangle nut leadscrew for CNC 8mm threaded rod lead screw for 3D printer
Availability:
In stock
₹99.00 – ₹119.00
Discount per Quantity
| Quantity | 6 - 15 | 16 - 40 | 41 + |
|---|---|---|---|
| Discount | 2% | 4% | 6% |
| Price | ₹97.02 – ₹116.62 | ₹95.04 – ₹114.24 | ₹93.06 – ₹111.86 |

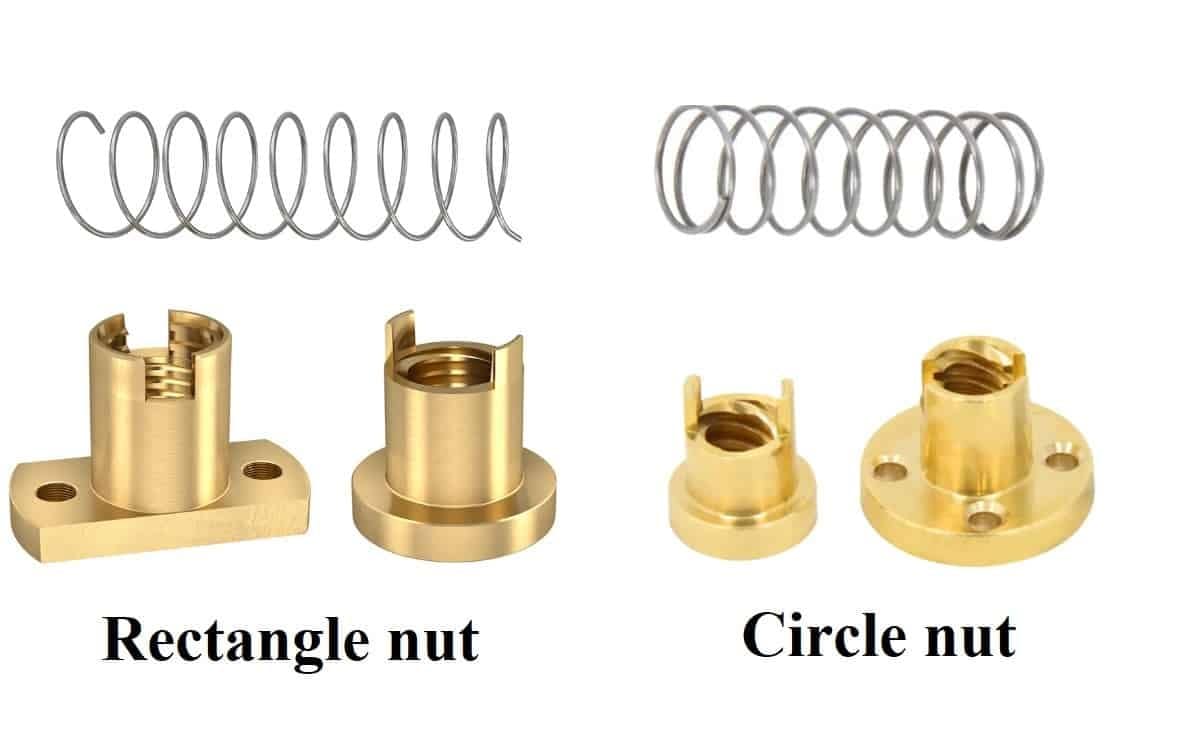

Anti backlash nut spring loaded circle/rectangle nut leadscrew for CNC 8mm threaded rod lead screw for 3D printer

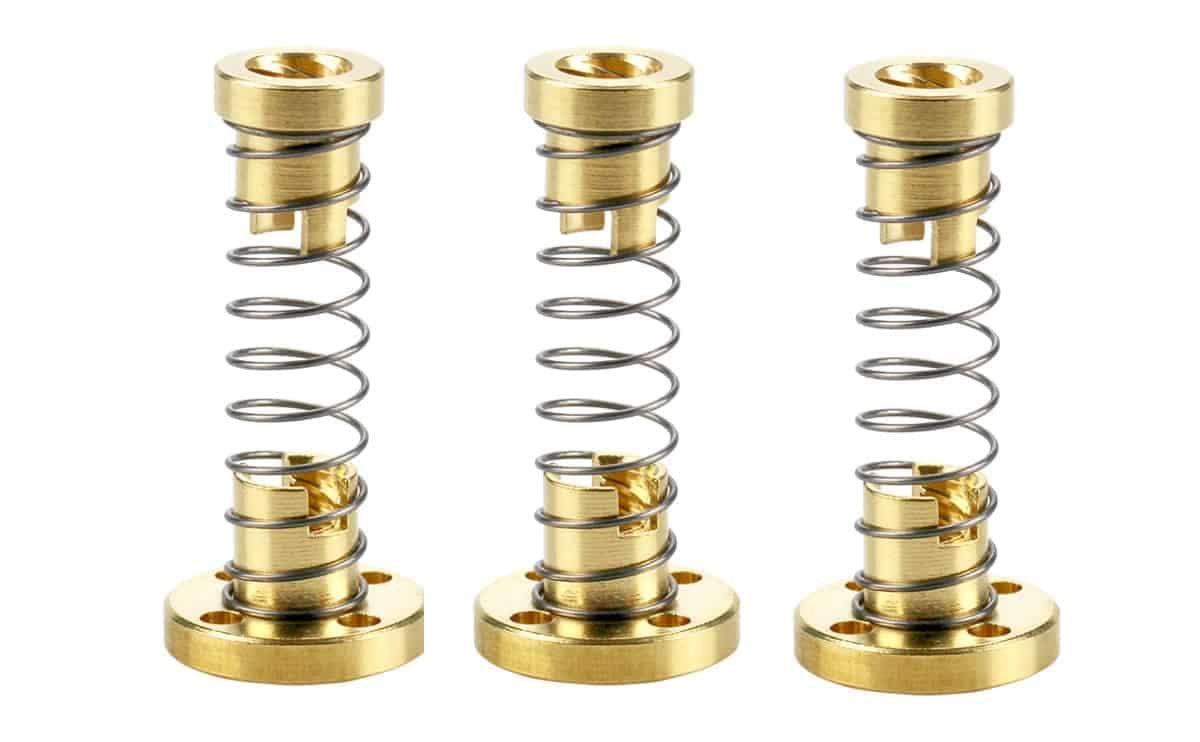

T8 Anti backlash spring loaded nut for 8mm threaded rod lead screw.
- anti backlash nut block for 8mm metric acme lead screw used with an 8mm Lead Screw in general machine tools such as 3D printing, CNC, etc.
- It is made from brass and is very reliable in linear motion applications
- Anti-Backlash Nut features a mounting flange with four un-tapped holes for M3 screws.

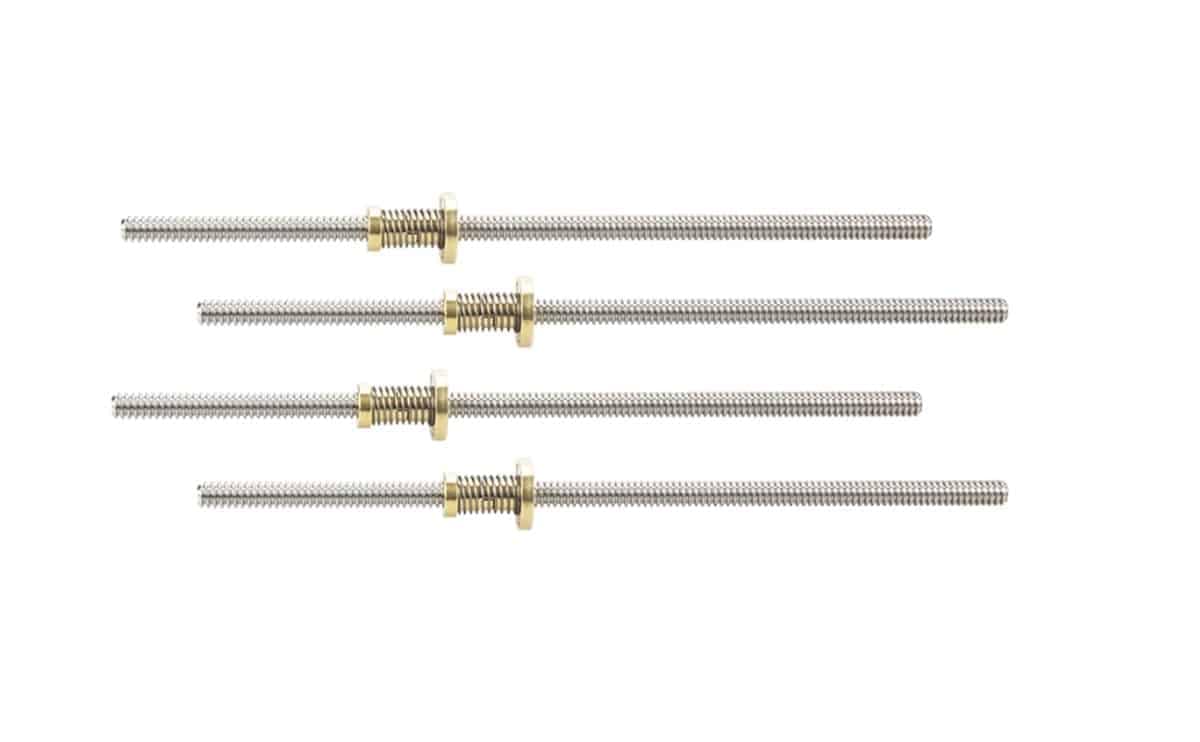

- It is intended for use with Tr8*4(P2) leadscrews, which are 8mm-diameter rods with two independent trapezoidal threads spaced 2mm apart.
- One full revolution of such a rod will result in a 4.0mm linear displacement of the traveling nut.
Features T8 Anti backlash nuts:
- Easy to install and convenient to use.
- Made from brass and very reliable in linear motion applications.

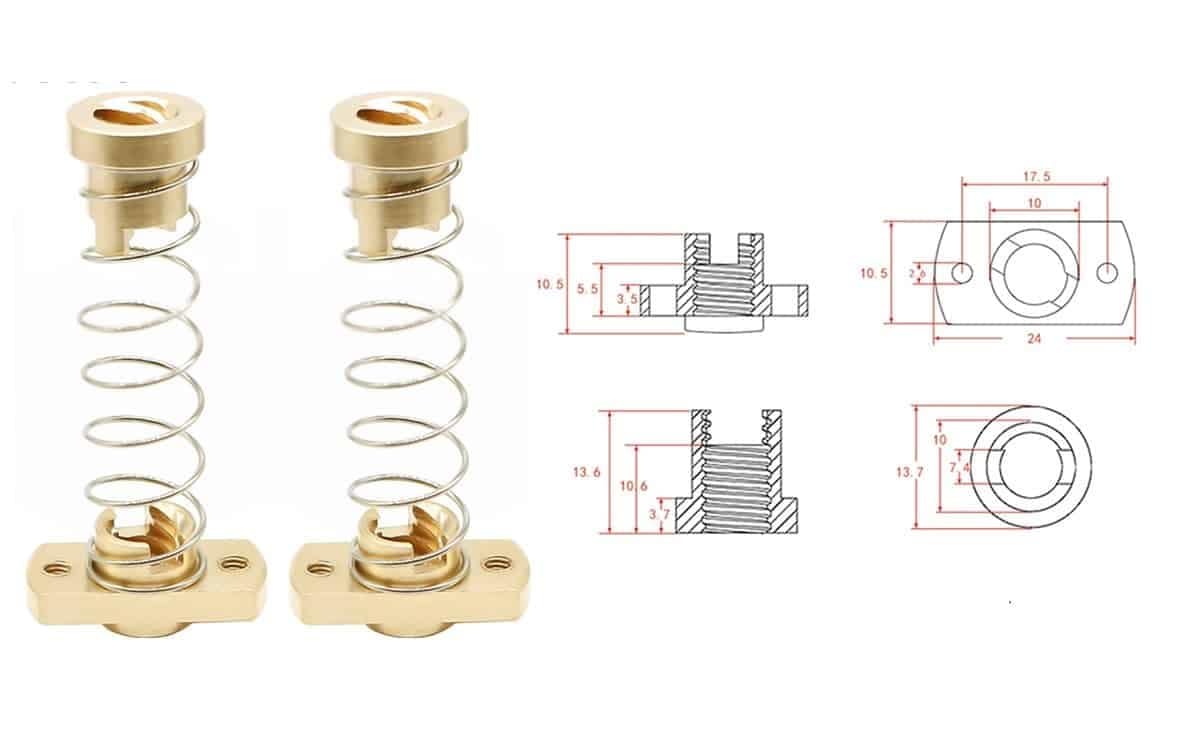

Specifications:
- Model:TR8
- Type: 4 start, 2 start, 1 start.
- Material:Â Brass
- Color:Â Golden
- Dia: 8mm
- Pitch:Â 2 mm
- Small Diameter:Â 16mm
- Large Diameter:Â 22mm
- Mounting Holes:Â 3mm
- Thread:Â 8mm
- Lead:Â 4mm
- Pitch:Â 2mm
Packages Include:
- As per order of T8 circle / rectangle nut
| Weight | N/A |
|---|---|
| HSN Code | 847790 |
| Type | 4 start Circle nut, 4 start Rectangle nut, 2 start Circle nut, 1 start Circle nut |
