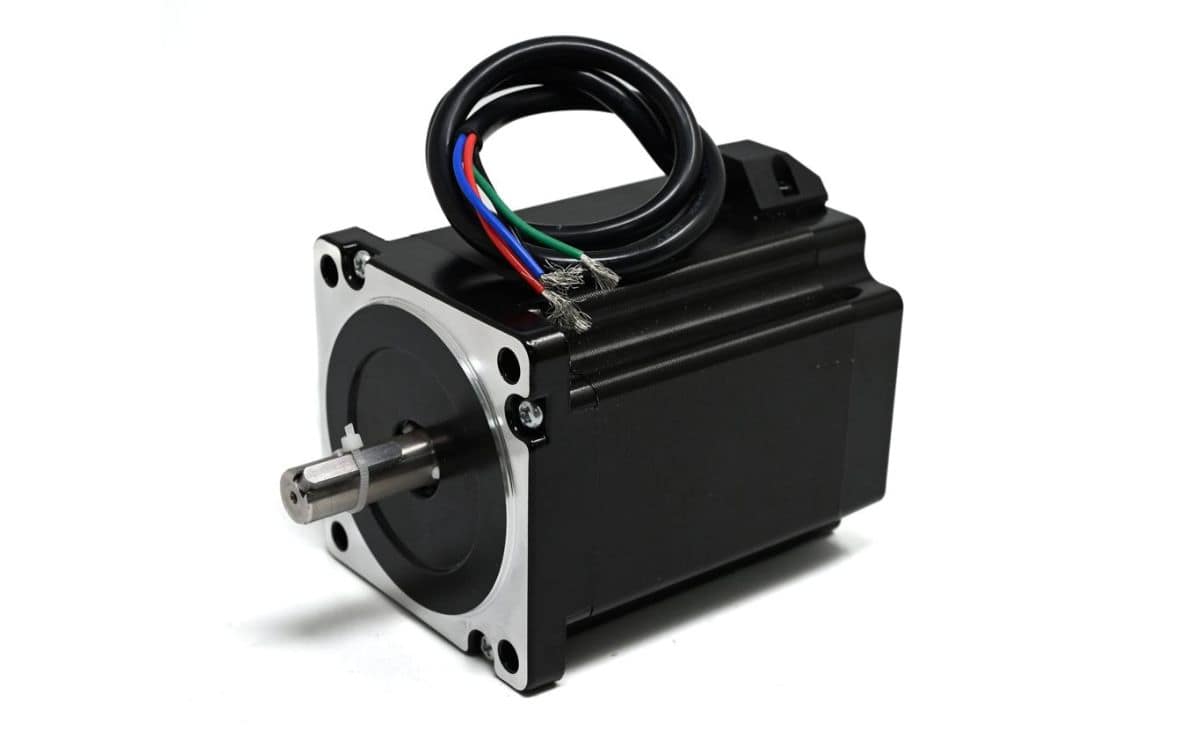

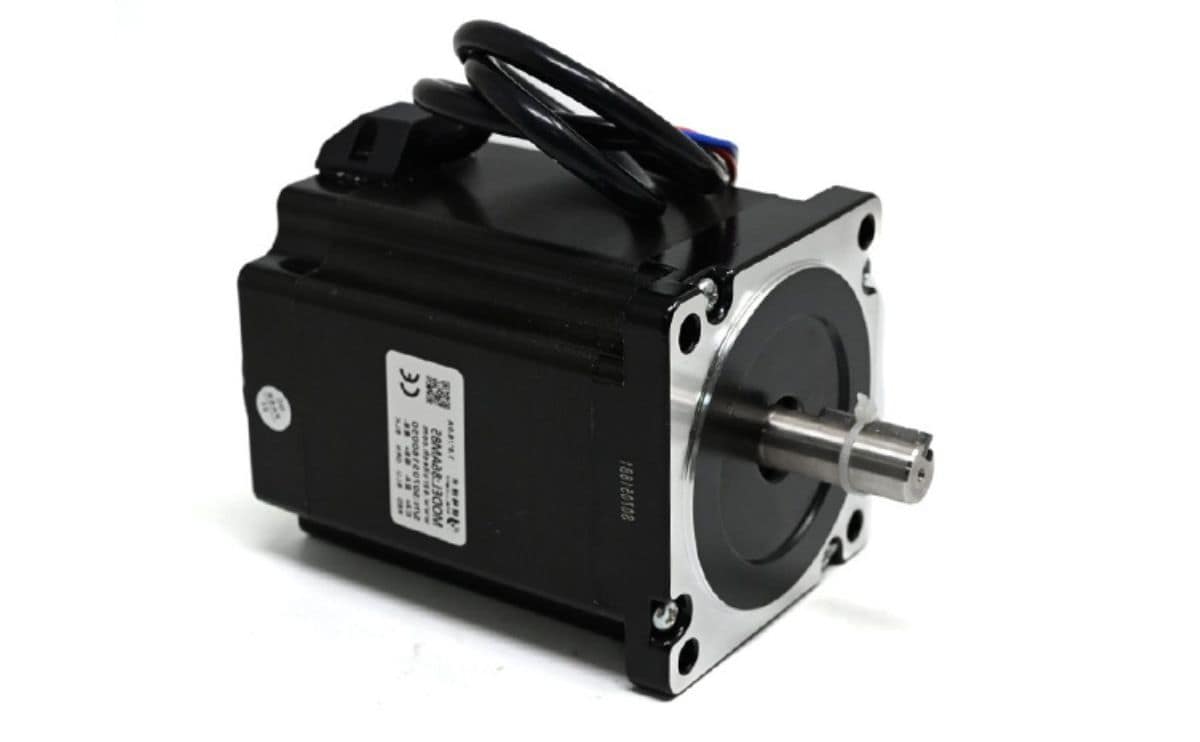

86AM100 Stepper Motor High Torque NEMA34 Motor for CNC

86AM100 Stepper Motor High Torque NEMA34 Motor for CNC

86AM100 Stepper Motor High Torque NEMA34 Motor for CNC

• 86AM100 Stepper Motor is a powerful industrial-class NEMA34 sized hybrid stepper motor engineered for applications requiring high torque, smooth motion and excellent positional accuracy.
• robust body construction, precise 1.8° stepping angle and high efficiency magnetic structure, the 86AM100 delivers consistent performance even under heavy loads.

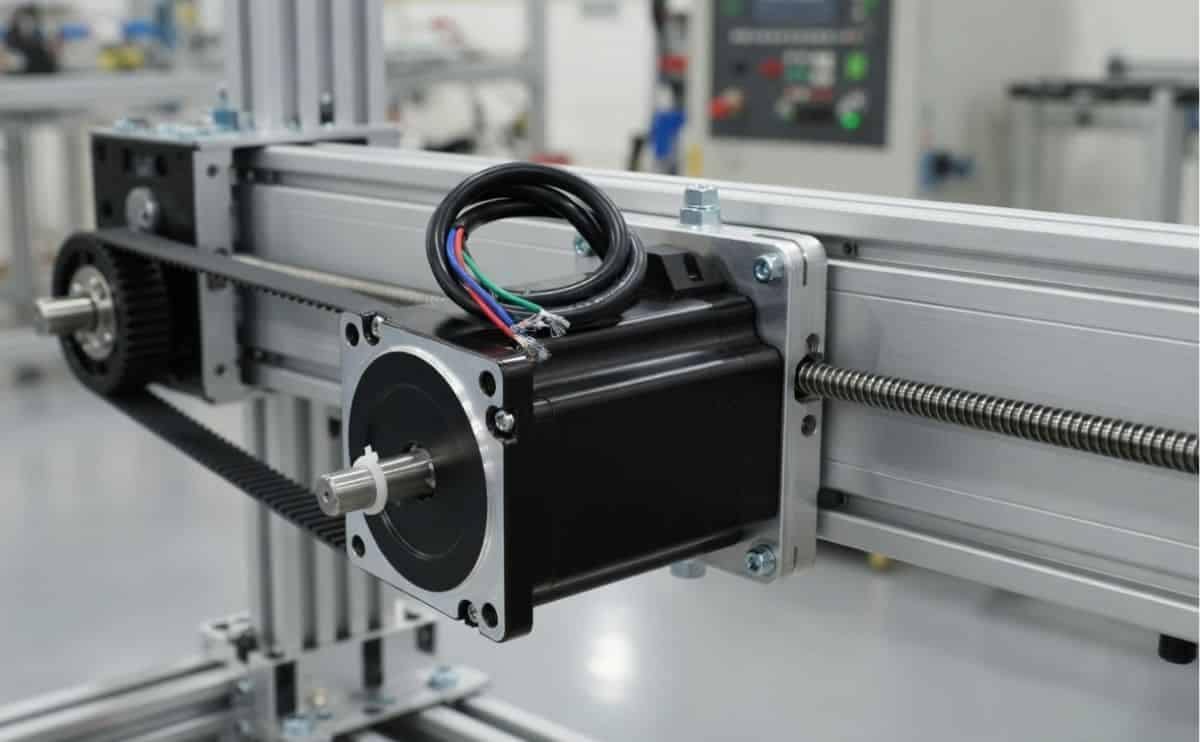

• Motor is widely used in CNC routers, milling machines, 3D printers, automated conveyors, packaging machines, pick-and-place robots, and various industrial automation systems.

Specifications

• Motor Model: 86AM100
• Frame Size: NEMA 34 (86 × 86 mm)
• Step Angle: 1.8°
• Rated Current: 5.5A – 6A
• Holding Torque: 8.0–12.0 N·m
• Shaft Diameter: 12 mm
• Rotor Inertia: High-density rotor for stable torque
• Number of Leads: 4-phase / 6-phase (optional)
• Inductance: Low inductance for high-speed performance
• Body Length: ~100mm (varies by exact variant)
• Operating Temperature: −20°C to +50°C

Features

• High-torque industrial-grade motor
• Smooth and stable motion even under heavy load
• 1.8° precise stepping for accurate positioning
• Low vibration and reduced noise
• Long-life bearings and copper winding
• Compatible with most NEMA34 drivers
• Ideal for high-performance CNC and automation
• Strong aluminum body for heat dissipation
• Supports long duty cycles in industrial use

Applications

• CNC Routers & CNC Milling Machines
• 3D Printers & Industrial Automation
• Laser Cutting Machines
• Packaging & Labeling Machines
• Robotic Arms / Pick & Place Automation
• Textile Machinery
• Conveyor & Material Handling Systems
• Woodworking and Metalworking Machines

Usage Instructions

• Pair with a compatible NEMA34 Closed loop stepper motor for best performance
• Ensure correct current settings on the driver to prevent heating
• Use shielded cables for long-distance connections
• Maintain proper ventilation around the driver
• Align shaft and couplings properly to avoid vibration

Package Includes

• 1 piece of 86AM100 NEMA34 Stepper Motor
