Sale!
, , ,

6200ZZ bearing 10mm bore bearing 6200ZZ stainless steel bearing 6200ZZ dimensions 10x30x9mm

1 review
Availability:

In stock


39.00

Discount per Quantity

Quantity 6 - 1011 - 3031 +
Discount 2%4%6%
Price 38.22 37.44 36.66

In stock

6200ZZ bearing 10mm bore bearing 6200ZZ stainless steel bearing 6200ZZ dimensions 10x30x9mm

6200ZZ bearing 10mm bore bearing 6200ZZ stainless steel bearing 6200ZZ dimensions 10x30x9mm,

  • metal shields on these bearings are designed to offer protection against the entry of some dirt and so on, as well as lighter mechanical damage.
  • Shielded bearings also help to contain the lubricant/grease.
  • These budget deep groove ball bearings are versatile, robust and moderately easy to maintain.
  • They are well used in the agricultural industry, garden equipment, manufacturing and more.
  • The raceway of the deep groove ball bearing includes arc-shaped deep grooves for both the inner and outer rings and can support radial loads, axial loads in both directions, and synthetic loads, and are also ideal for high-speed rotation applications.

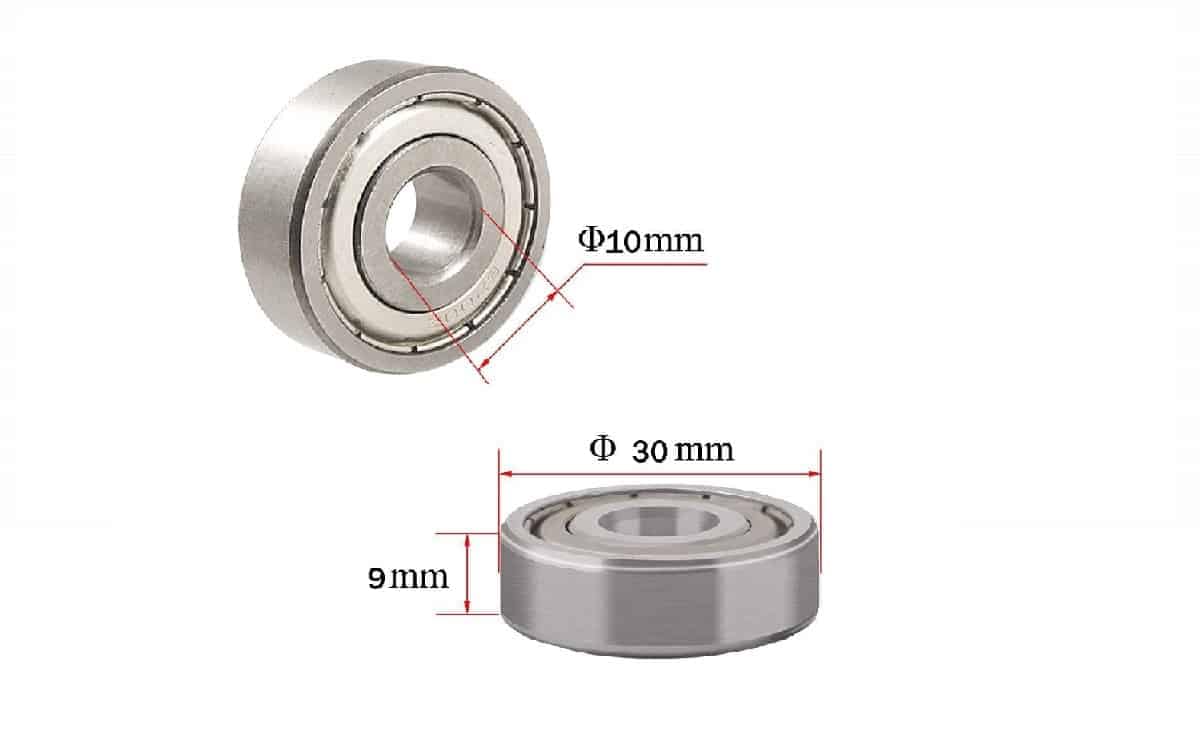

6200ZZ Specification:

  • Size:
    • Bore Diameter (Inner Diameter): 10 mm
    • Outer Diameter: 30 mm
    • Width: 9 mm
  • Type:
    • Deep Groove Ball Bearing
  • Shield Type:
    • Metal shields on both sides (ZZ designation)
  • Material:
    • Rings and balls are typically made of chrome steel or stainless steel.
  • Seals/Shields:
    • Double metal shields (ZZ) to protect against dust and contaminants.
  • Cage:
    • Usually features a cage to separate and guide the balls.
  • Precision:
    • Precision classes may vary (e.g., ABEC-1, ABEC-3, ABEC-5).
  • Load Ratings:
    • Radial Load Capacity: The maximum radial load the bearing can withstand.
    • Axial Load Capacity: The maximum axial (thrust) load the bearing can withstand.
  • Speed Ratings:
    • Maximum rotational speed at which the bearing can operate effectively.

6200zz bearing used in?

  • Electric Motors: 6200ZZ are widely used in electric motors for various applications, including household appliances, power tools, and industrial machinery.
  • Conveyors: In conveyor systems, 6200ZZ are employed to facilitate the movement of belts and rollers, ensuring smooth operation.
  • Agricultural Equipment: Some types of agricultural machinery, such as small motors and conveyors, may use 6200ZZ.
  • Skateboards: While smaller bearings like 608ZZ are more common in skateboard wheels, 6200ZZ may also be used in certain skateboard components.
  • Power Tools: Handheld power tools, such as drills and grinders, may utilize 6200ZZ in their motor assemblies.
  • Textile Machinery: In the textile industry, 6200ZZ can be found in various components of spinning and weaving machinery.
  • Exercise Equipment: Some exercise machines, including stationary bikes and treadmills, may use 6200ZZ in their moving parts.
  • Printers and Copiers: Bearings like the 6200ZZ can be used in various moving parts of office equipment such as printers and copiers.
  • Robotics: 6200ZZ may find applications in various robotic systems, particularly in joints and moving parts.

Package Include:

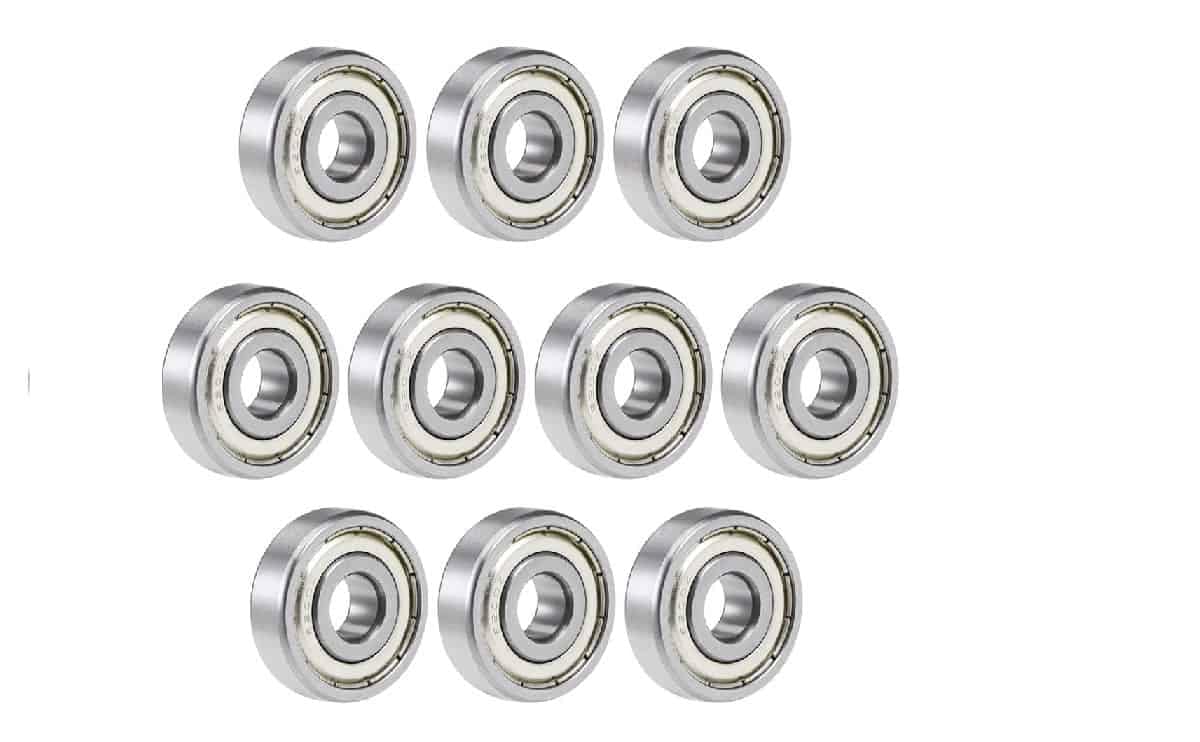

  • 1 piece of 6200zz bearing.



HSN Code

84821090
