2 Start Lead Screw Threaded Rod Lead Screw 8mm Dia Thread 2mm Pitch 2mm with Circle or Rectangle Nut for 3D printer

2 Start Lead Screw Threaded Rod Lead Screw 8mm Dia Thread 2mm Pitch 2mm with Circle or Rectangle Nut for 3D printer

2 Start Lead Screw Threaded Rod Lead Screw 8mm Dia Thread 2mm Pitch 2mm with Circle or Rectangle Nut for 3D printer

• Screw rod type of linkage in a machine that converts rotational motion into linear motion.
• 8mm threaded rod is commonly used in low power actuator and positioner mechanisms for intermittent use rather than carrying high power.
• This specific leadscrew is made of stainless steel material, ensuring durability and resistance to rust.

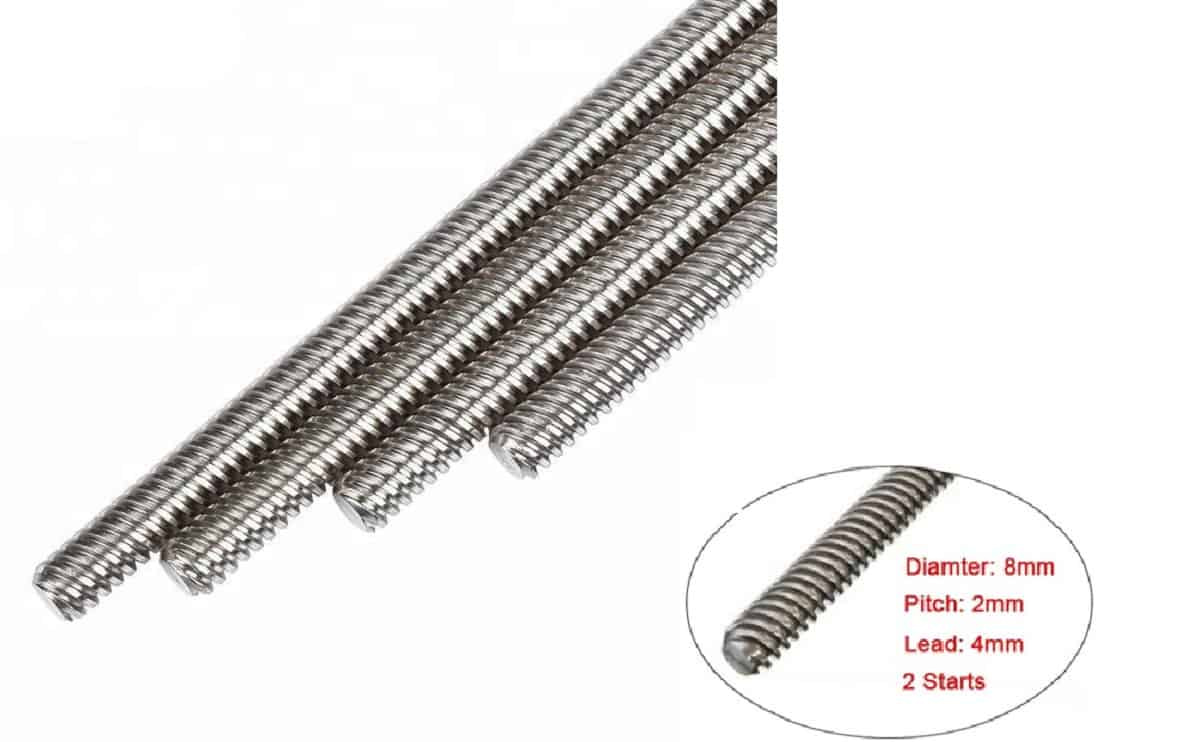

Specifications of 2 Start Lead Screw

• Material: stainless steel (SS304)
• Size: 400/500/600/1210mm
• Lead screw diameter: 8mm
• Pitch: 2mm
• Lead: 4mm
• Type: 2 start lead screw
• Nut type: Rectangle or Circle

Applications

• One of the advantages of using a leadscrew is its large load carrying capability.
• Despite its compact size, it can handle significant loads. Additionally, leadscrews offer a large mechanical advantage, allowing for precise and accurate linear motion.
• Furthermore, leadscrews provide smooth, quiet, and low maintenance operation.
• With minimal parts required, they are easy to use and do not require additional processing.
• Most importantly, many leadscrews are self-locking, meaning they can hold their position without the need for additional mechanisms.
• threaded lead screw with a 2 start 2mm thread pitch and 2mm diameter is versatile and can be used in various applications.
• threaded lead screw is commonly found in machine tool guide rails, 3D printers, CNC machines, and other equipment where precise linear motion is required.
• 8mm threaded rod leadscrew offers reliable and efficient performance, making it an ideal choice for applications that require accurate and smooth linear motion.
• Also available in different diameter 8mm lead screw , 12mm lead screw, single start and 10mm lead screws.

Packages Include

• 1 set of 2 start lead screw with circle or rectangle nut (as per order).
