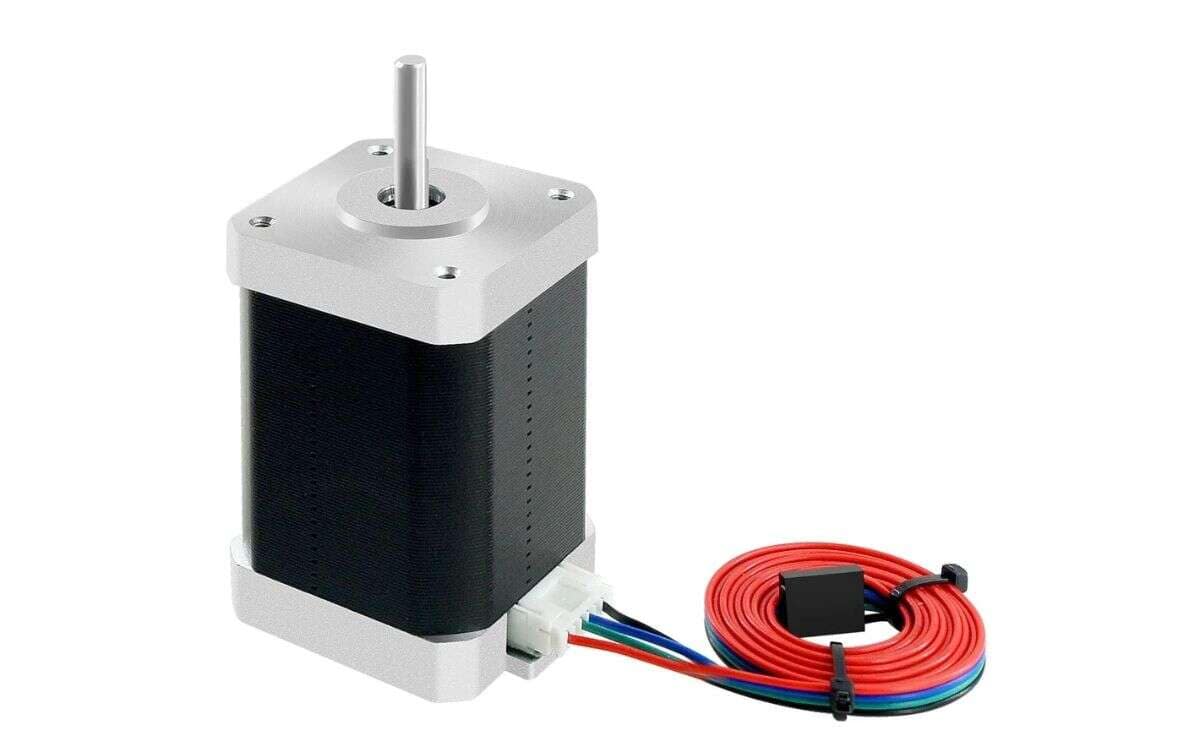

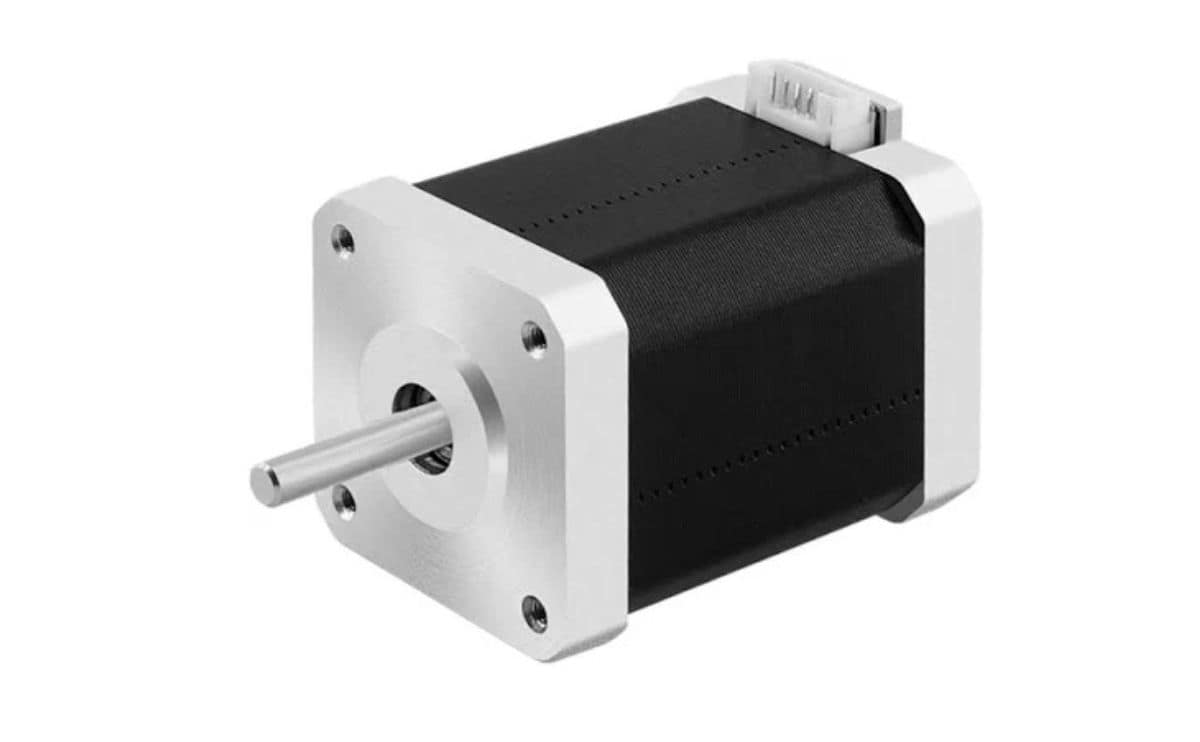

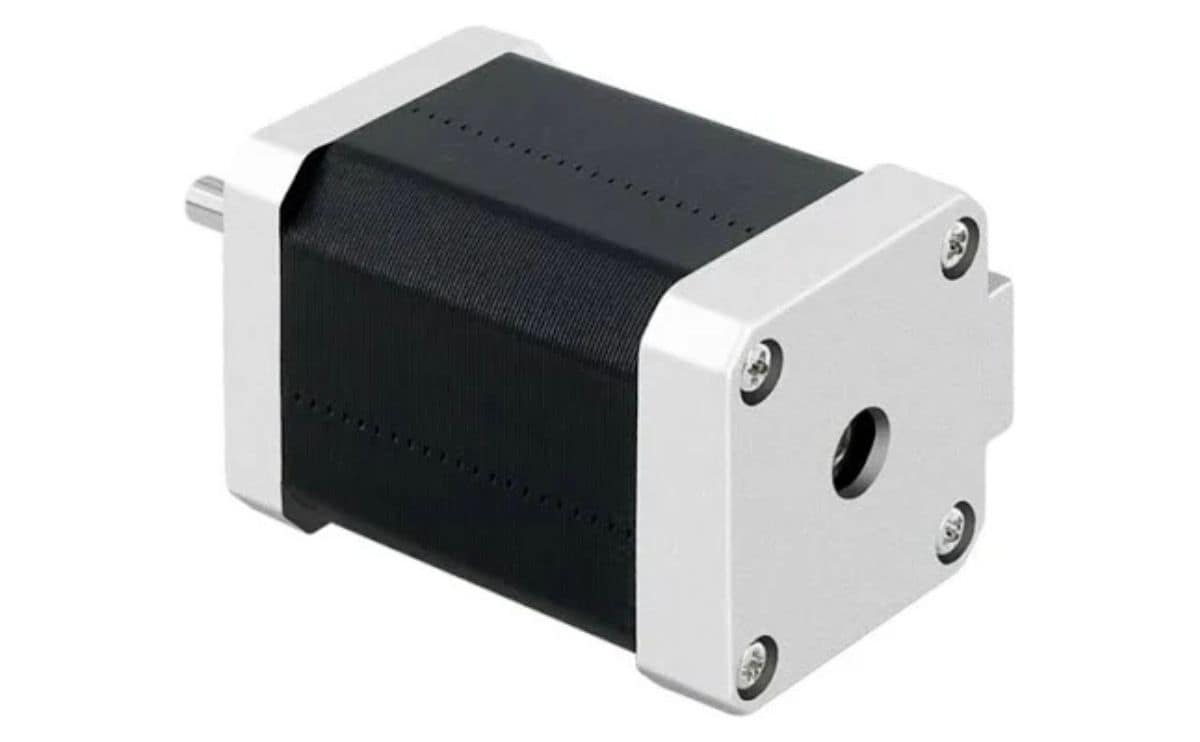

17HS6001 stepper motor NEMA17 42mm and 60mm Height

17HS6001 stepper motor NEMA17 42mm and 60mm Height

17HS6001 stepper motor NEMA17 42mm and 60mm Height

• 17HS6001 stepper motor is a powerful and reliable 42mm hybrid stepper motor engineered for high-precision linear and rotational motion.
• With a 60 mm body height and strong torque output, it is ideal for demanding applications like 3D printers, CNC routers, robotics, and automation machinery.
• Its 1.8° step angle, low vibration, and stable performance ensure smooth and accurate motion control, making it one of the most preferred motors for machine builders and OEMs.
• Built with high-quality windings and bearings, the 17HS6001 performs consistently even in continuous operation environments.

Specifications

• Model: 17HS6001
• Motor Type: NEMA17 17HS6001 stepper motor
• Frame Size: 42 × 42 mm
• Body Height: 60 mm
• Step Angle: 1.8°
• Holding Torque: 55–70 Ncm
• Rated Current: 1.5 – 1.7A per phase
• Voltage: 2.8 – 3.2V
• Phase Resistance: ~1.8 Ω
• Phase Inductance: ~3.2 – 4.0 mH
• Shaft Diameter: 5 mm (D-cut or round)
• Wiring: 4-wire bipolar
• Rotor Inertia: ~68 g·cm²
• Operating Temperature: -10°C to +50°C

Features

• High torque 60 mm body motor for powerful motion
• Smooth and accurate positioning with 1.8-degree precision
• Low noise and low vibration due to hybrid design
• Compatible with all major 3D printers and CNC controllers
• Durable construction for continuous industrial use
• Works with A4988, DRV8825, TMC2208, TMC2225, TMC5160 drivers
• Energy-efficient and thermally stable

Applications

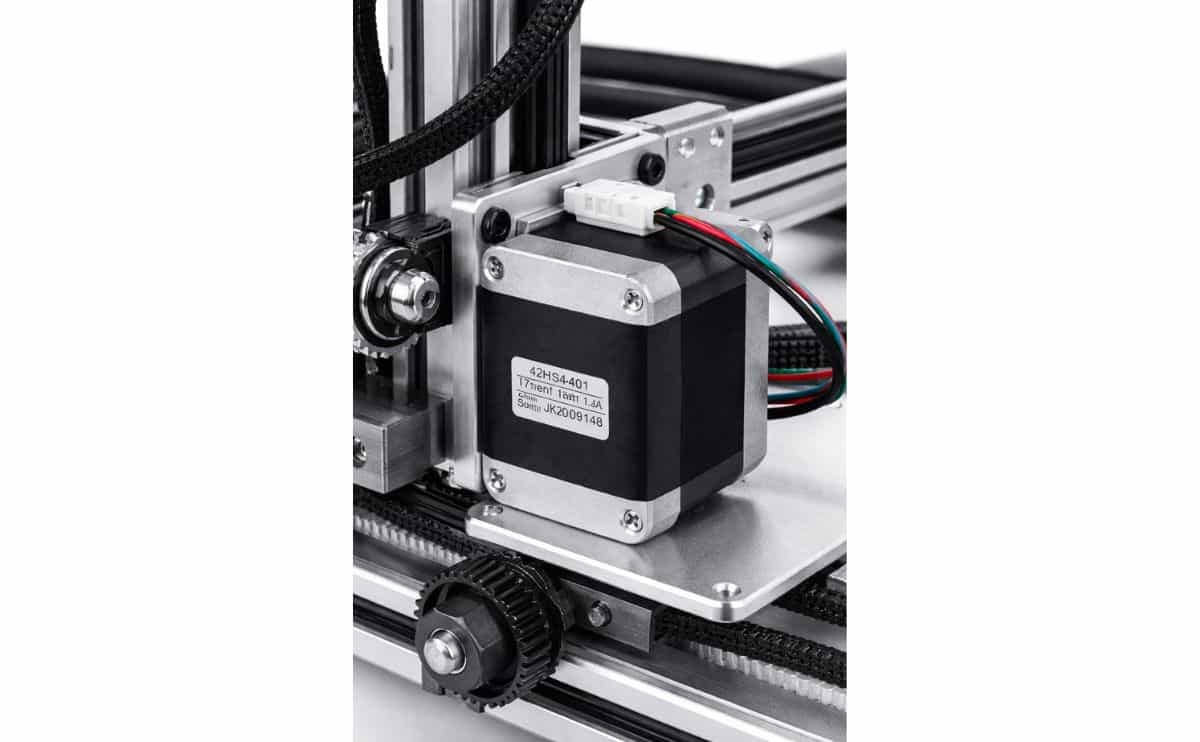

• 3D Printers (X/Y/Z axes, extruder)
• CNC machines & engraving machines
• Robotics and automation mechanisms
• Textile machinery
• Medical equipment
• Pick & place systems
• DIY engineering projects

Usage Instructions

• Match wiring to your driver: A+, A–, B+, B–.
• Set correct motor current on the stepper driver.
• Ensure proper cooling when using high torque settings.
• Align the shaft with couplers or pulleys to avoid vibration.
• Test motion at low speed before full-speed use.

Package Includes

• 1 piece of  Stepper Motor 17HS6001 with 1m wire
